For architects and interior designers, the integrity of a commercial space is defined by how well it ages. While flooring materials are selected for aesthetics, durability and sustainability, the longevity of that investment often hinges on a technical detail frequently overlooked in furniture schedules: the floor-to-furniture interface.
In our industry, decisions matter. What might seem like a small and inconsequential decision at the time could turn into a large, costly issue down the road. Selecting the incorrect caster or glide can lead to “pivot point” wear, surface indentations, and the eventual voiding of flooring warranties. This guide outlines the mechanical requirements for specifying furniture hardware across diverse commercial segments.
The Engineering of the Interface
When specifying furniture for commercial environments, hardware must be evaluated based on mechanical necessity rather than just aesthetic fit.
- Load Distribution: Total weight (furniture + maximum occupancy) must be calculated to determine caster diameter. Under-specified wheels lead to “flat-spotting,” increasing the push-force required and causing equipment to grind debris into the wear layer.
- Material Compatibility: The hardness of a caster or glide should be inversely proportional to the hardness of the floor. Hard surfaces require soft treads (Polyurethane/Rubber) to prevent friction-induced marring.
- Maneuverability vs. Tracking: For mobile collaborative spaces such as a lunchroom in a school, a configuration of two rigid and two swivel casters provides the best balance of straight-line tracking and 360-degree pivoting.
Specification Standards by Substrate
1. Soft Surfaces (Broadloom and Carpet Tile)
Carpeted environments present the highest rolling resistance due to pile compression.

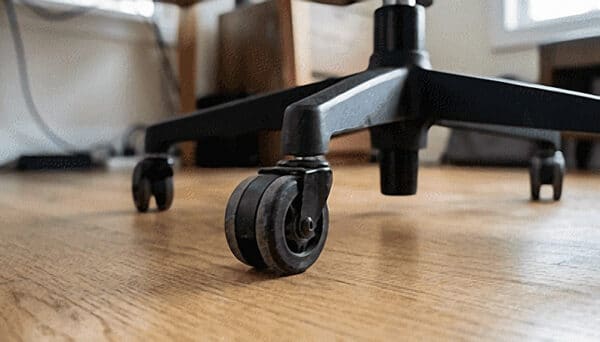

- Casters: Specify large-diameter, dual-wheel casters. The increased surface area distributes the load, preventing the furniture from “setting” into the backing and damaging the face fibers.
- Glides: Polished metal or stainless steel is preferred. Unlike plastic, metal glides minimize friction against synthetic fibers, reducing snagging and long-term “fuzzing.”
2. Hard Resilient Surfaces (VCT, Stone, Tile)
These surfaces are durable but susceptible to micro-scratching and “tracking”.
- Casters: Non-marking polyurethane is the industry standard. It provides sufficient shock absorption for grout lines while protecting the floor’s finish.

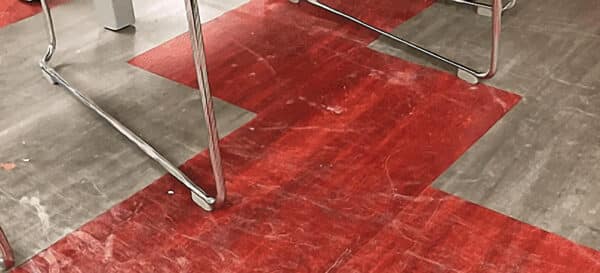

- Glides: Nylon glides are versatile but beware of felt in areas subject to wet maintenance. Moisture causes felt to harden and trap abrasive particulates, turning your furniture into a piece of sandpaper.
3. High-Performance Resilient (LVT and Sheet Vinyl)
Luxury Vinyl Tile (LVT) requires specific attention. While the wear layer is robust, factory-applied urethanes can show scratches in darker colors, and the substrate can suffer from permanent static load indentations. Design Note: Most LVT manufacturers specifically warn against dragging furniture; the interface must be designed to roll or glide without shear force.
Hardware Specification Matrix
| Component Material | Ideal Substrate | Specifier Benefit | Risk Factor |
|---|---|---|---|
| Stainless Steel | Carpet / Soft Surface | Zero snagging; high durability. | Potential for rust if low-grade. |
| Nylon | VCT / Universal | High chemical resistance. | Can embed grit over time. |
| Polyurethane | Hard Surface / Tile | Non-marking; quiet operation. | Higher cost per unit. |
| Felt | Hardwood (Dry only) | Maximum acoustic dampening. | Abrasive when wet or old. |
| Rubber | LVT / Cushioned Vinyl | High grip; prevents indentations. | High friction; harder to slide. |
Protecting the Specification
To ensure the design intent survives the procurement and facility management phases, consider these initiatives for your furniture schedules:
- Specify by Diameter: For mobile carts, 3-inch or 4-inch diameters significantly reduce “floor fatigue” compared to standard 2-inch options.
- Define Maintenance Compatibility: Ensure glides are compatible with the facility’s cleaning protocols (e.g., avoid felt in clinics where wet disinfection is daily).
- Warranty Alignment: Cross-reference caster specs with the flooring manufacturer’s technical data sheets. If the hardware isn’t approved, the wear warranty is often dead-on arrival.
The “Sandpaper Effect”: Why Maintenance Matters
It’s not over when the customer takes ownership of the space. The “foot” of the furniture effectively becomes a sander that grinds trapped soil into the flooring.

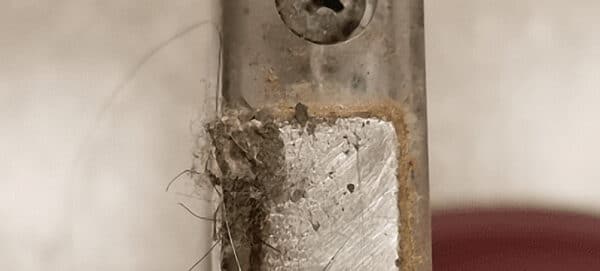

- The Grit Trap: Nylon and felt are prone to “embedding,” where microscopic grit and metal particulates become trapped. Over time, the glide acts like a sanding block, damaging the wear layer.
- Seized Casters: Debris like hair and carpet fibers wrap around swivel bearings. This increases rolling resistance until the wheel seizes and “skids,” causing permanent burn marks on resilient floors.
Red Flags for Replacement
Maintenance can only extend a product’s life so far. To protect the flooring investment, watch for these indicators:
- Visible “Shine” on Nylon: If a nylon glide is worn smooth and flat, it has lost its ability to navigate surface textures.
- Reduced Tread Thickness: If a polyurethane caster wears down to the plastic hub, the shock absorption is gone, increasing the risk of floor cracking.
- Audible Grinding: Any “crunching” during movement indicates internal grit is actively damaging the floor.
By treating glides and casters as critical architectural components in the decision-making process rather than afterthoughts, you protect the aesthetic vision, the performance of the flooring, and the long-term facility budget.
